1993 - 2026 Honda XR650L Skid Plate

T-Rex Racing 1993 - 2024 Honda XR650L Skid Plate

Alternative Views:


Part Number: N109-24SP
Our Price: $229.95

Quantity in Stock:20

Free Shipping
Availability:: Usually Ships in 1 to 2 Business Days
Qty:

Description

  • Condition: New
  • Special feature: Compatible with our engine guards (N109-24EG) and center stand (N109-24CS). Removable cover to do oil change. Can be mounted directly on OEM engine guards. Covers linkage
  • Material: Precision CNC machined aircraft grade aluminum
  • No Cut or plastic fairing modifications required
  • Fit Models: Honda
  • 1993 - 2026 XR650L (NOT COMPATIBLE W/ CALIFORNIA ECU)
  • Fitting Difficulty (1-5): 3 - Average (1 - easy / 5 - Little bit of skill)
  • Fitting Time: 45 - 60 minutes
  • PDF Instruction:
  • Please keep in mind that when you add "any" extra items to your bike that makes it closer to the ground, you can't lean the same way you used to and expect nothing to touch. Enjoy your skid plate!

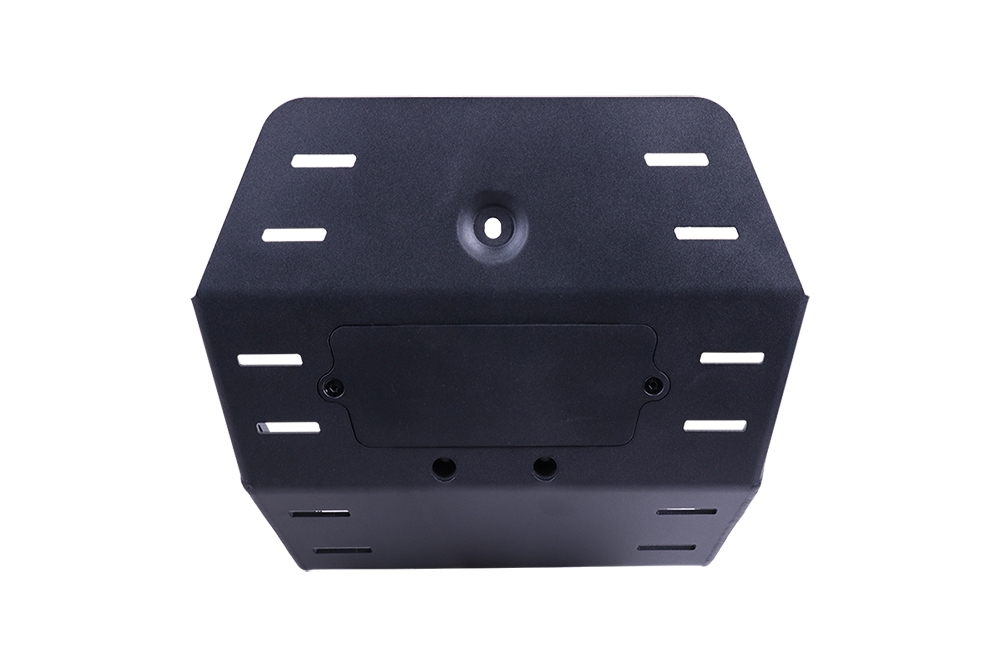

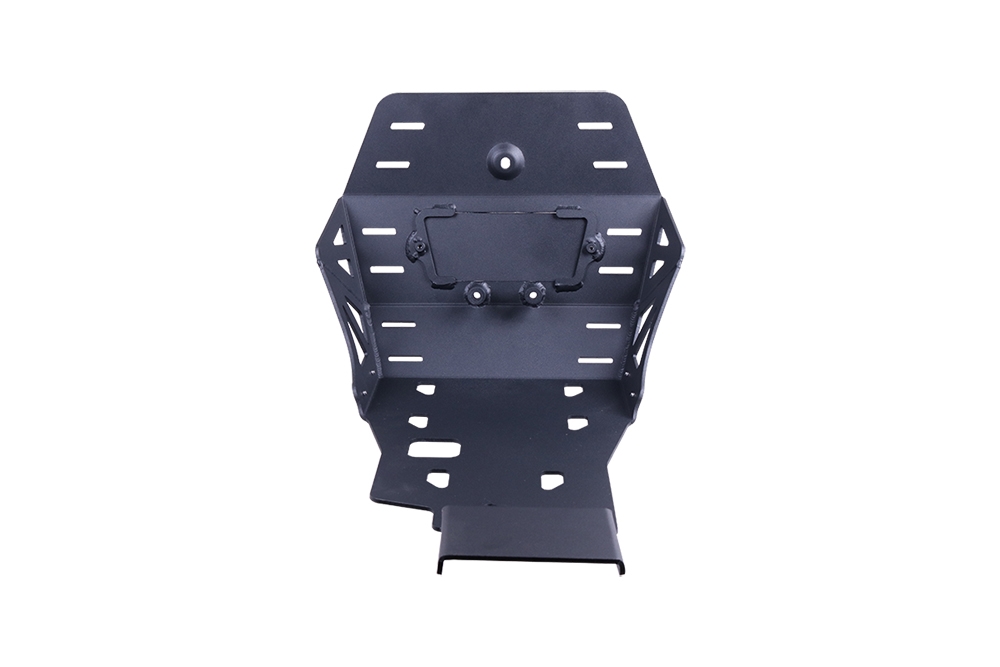

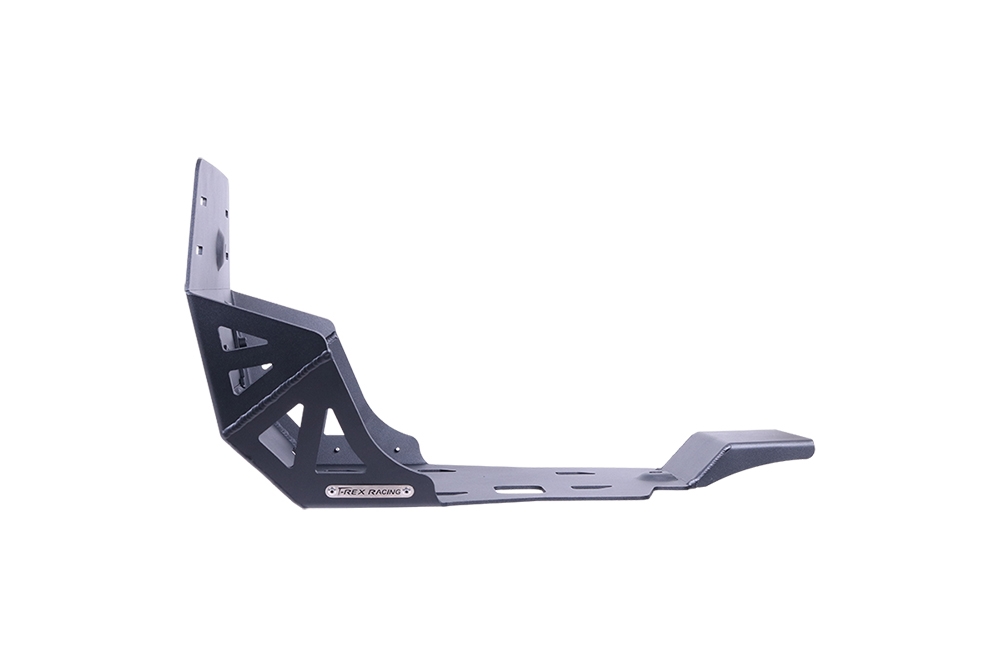

This purchase is for a heavy duty skid plate , designed to minimize damage and protect your bike from dirt, mud, and other debris. The skid plate is CNC cut from a solid 4mm sheet of aircraft grade aluminum. The plate is then tig welded and finished with black powder coating to increase durability. Rest assured that you are getting the best material commercially available.

Why Pick Our Skid Plate?


Durability and Quality

  • 4mm thick aircraft grade aluminum (Solid plate not separate pieces that are riveted/bolted together)
  • CNC cut / bend
  • Tig Welded
  • Finished in durable black powder coating (Plates thickness slightly increases after the powder coating)

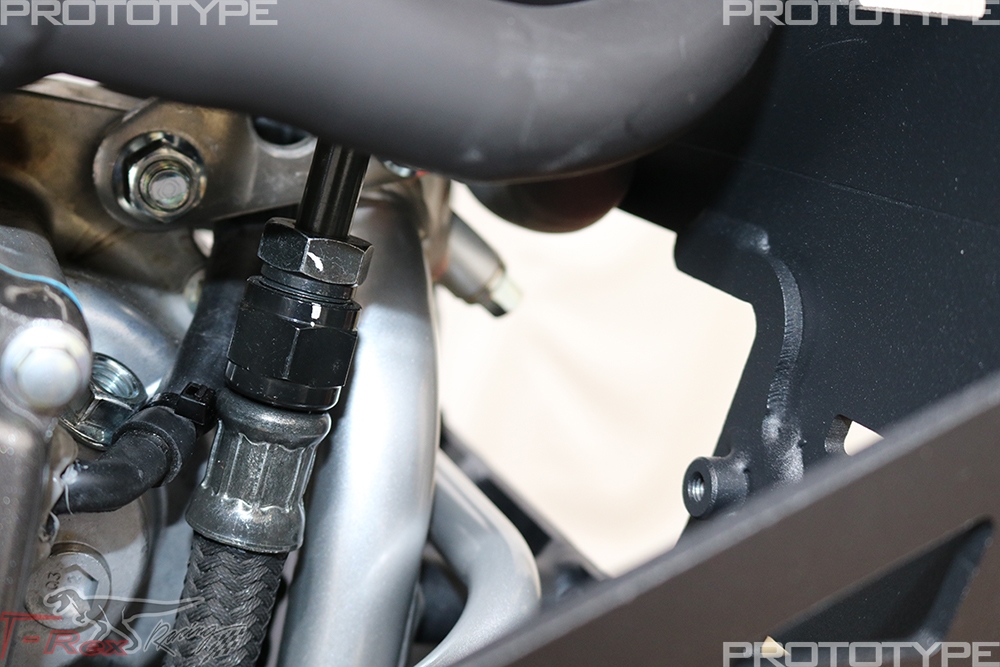

We understand that riders want protection for both on/off the road. Our skid plates were designed to take the beatings of your everyday riding. Our skid plates are mounted at two locations (front, back). The front brackets mount to the engine mount. The rear brackets uses an 8mm bolt. The mounting locations of a skid plate play a critical role in how much it can minimize damage and protect. We did not want to mount anything on the engine cover or stator as that would more likely cause more problems than prevent. Other skid plates that mount on the covers is trusting the integrity of the plate on 6mm bolts that are connected directly to the engine covers. Major impacts or accident will rip and crack that cover or bolt.

Accessibility and Compatibility


  • Installation Video Available! View and learn about the process before you make your decision

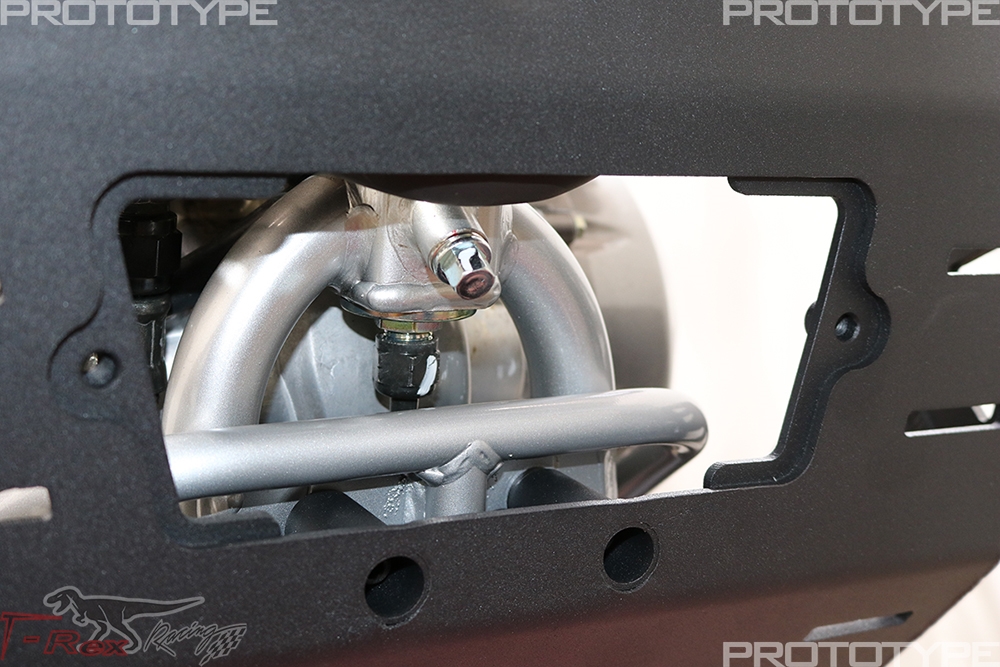

  • Easy Access to the oil filter!
  • Easy Access to the bottom oil drainage bolt
  • Compatible with our engine guards
  • Technical Customer Support - Monday - Friday 9am - 5PM

Peace of Mind

  • 30-day return policy
  • 2 Year Manufacturers Warranty for manufacturing defects
  • Free 2-3 Day Shipping within the 48 contiguous states

Average Rating: Average Rating: 4 of 5 4 of 5 Total Reviews: 1 Write a review »

  2 of 2 people found the following review helpful:

4 of 5 Engine guard March 8, 2026
Reviewer: Howard from Ohio
When I opened the box I saw loose hardware in the bag that covered the bubble wrapped guard, so I was concerned that I might be missing hardware or I had extra that didn't belong, but once I opened the rest of the packaging around the guard I found that the bag with the hardware in it was cut open which allowed the hardware to float around loose in the large bag. Once I reviewed all the required hardware I confirmed I had everything I needed. The paper instructions are of no value, the video is what you need to use, even that was a little on the weak side, especially for the U shaped bracket which has a notch in it, but nothing in the video mentions what position that notch should be in, so I tried it both ways to see which would provide the flattest mounting point. It's a nice guard, really provides good protection.
