2018 - 2023 Kawasaki Ninja 400 No Cut Frame Sliders w/ aluminum inserts

T-Rex Racing 2018 - 2023 Kawasaki Ninja 400 No Cut Frame Sliders w/ aluminum inserts



Alternative Views:


Part Number: N50-18
Our Price: $129.95



Availability:: Usually Ships in 1 to 2 Business Days


Aluminum Insert Color*:


Qty:
Description

  • Condition: New
  • Special features: Solid pucks, made to withstand a greater impact. Brackets are designed NOT to rotate in a low side.
  • Material: UHMW-PE (ultra high molecular weight polyethylene), aircraft grade aluminum
  • No cut or plastic fairing modifications required
  • Fit Models: Kawasaki
  • 2018 - 2023 Ninja 400
  • Fitting Difficulty (1-5): 3 - Average (1 - easy / 5 - Little bit of skill)
  • Fitting Time: 45 - 60 minutes
  • PDF Instruction:

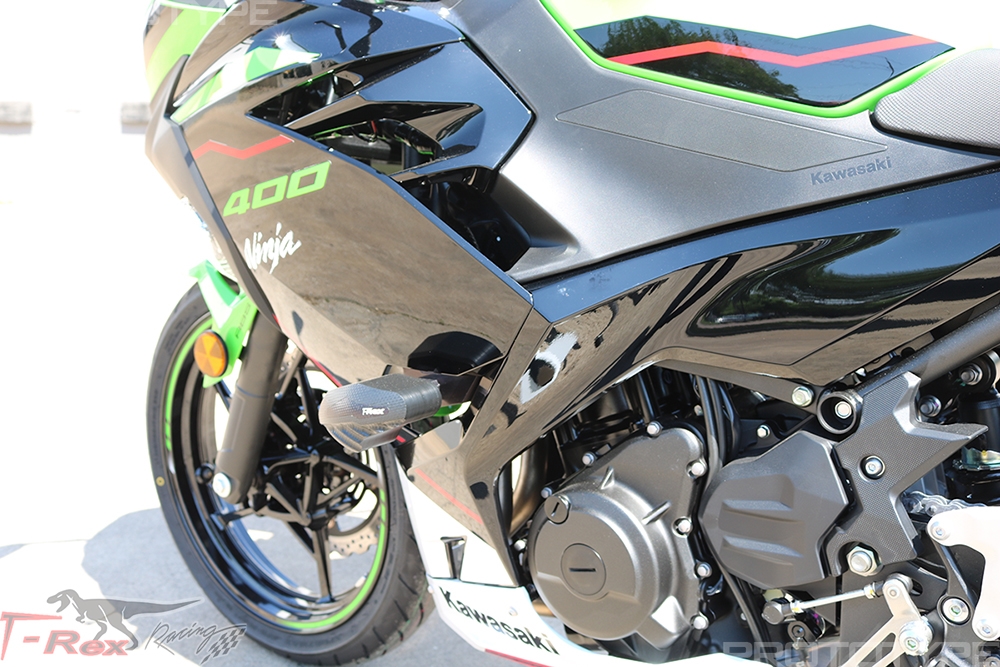

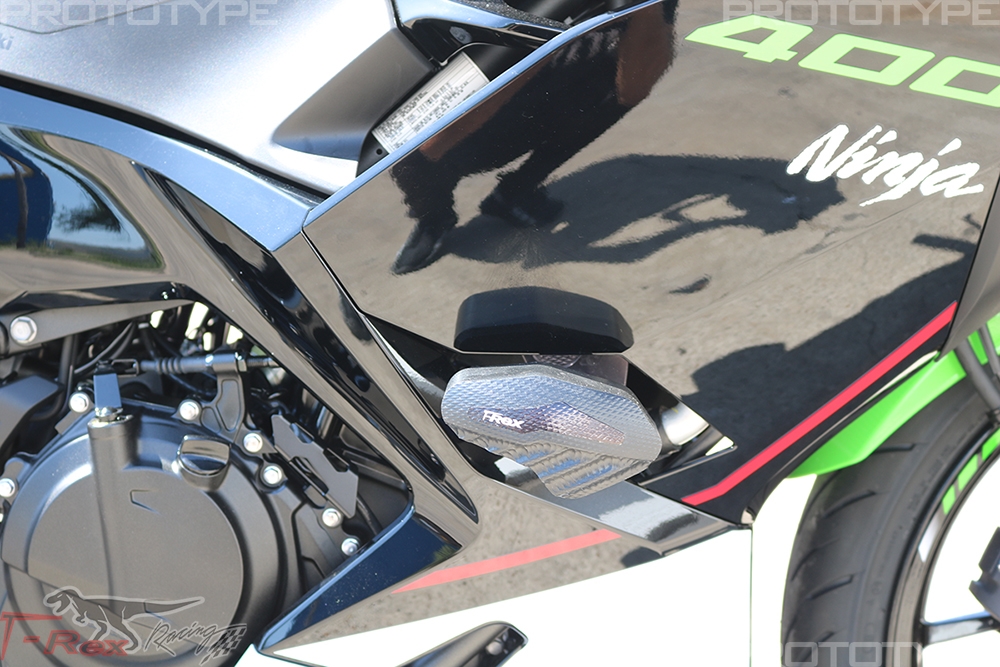

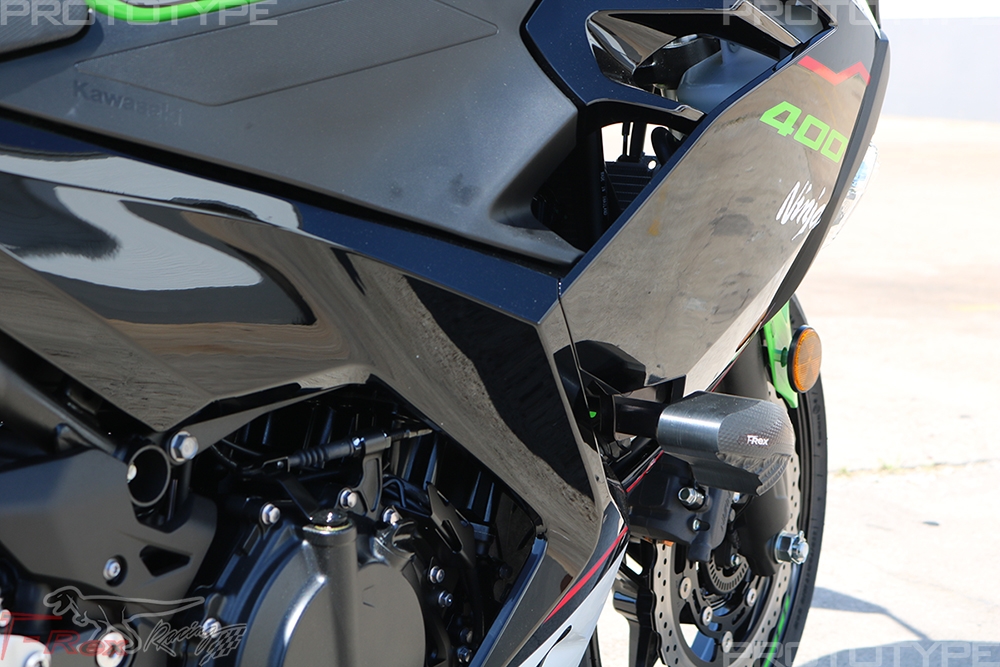

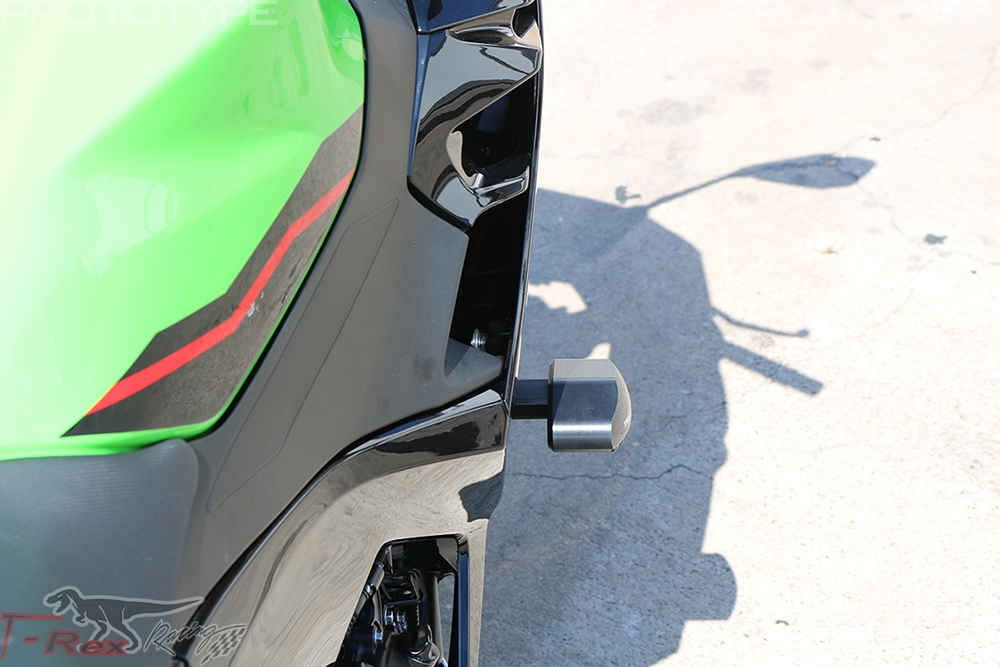

This purchase is for a set of no cut frame sliders for the above bike model. The sliders feature solid pucks with aircraft grade aluminum inserts to further prolong the puck life. Installation is a simple process that can be view on our youtube channel. The bracket is bolted to the engine mount and the slider puck is bolted onto it. The brackets wrap around the frame preventing them from rotating in the event of a low side. The material of the puck is made of UHMW-PE (ultra high molecular weight polyethylene), a tough plastic with good strength, wear resistance and dimensional stability. It is more dimensionally stable than Nylon and used in many industrial ball bearing and friction reducing applications. Compared to Delrin, it is softer but tougher. Delrin is harder but more brittle. It is an ideal material for frame sliders since it can absorb more impact force onto itself and therefore reduce the impact on the frame and engine. The slider pucks can be inexpensively replaced in case of a low-side. We use highest grade commercially available 12.9(177,000 psi in tensile strength) wherever possible. Rest assured that you are getting the best material commercially available.

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Best Frame Slider!!! October 11, 2023
Reviewer: John from Canada
Well build, solid, strong bracket with two mounting point. After install look solid on the bike. Easy to install, fast shipping.
